美国Gearench ZT2 1.75摩擦钳
|
销售美国Gearench摩擦钳、Gearench工具, Gearench ZT2 1.75, Gearench ZT3 1.875。
Gearench公司位于德克萨斯州休斯敦市，它成立于1927年。从这个工具开始，该公司已发展壮大成为超过40个产品线的企业，这些产品用于石油行业中的各个领域，包括勘探、钻井、成产、提炼和完成等工艺步骤。这些工具也在水井、非开挖技术钻井、采矿、发电应用和一般工业领域得到发展。

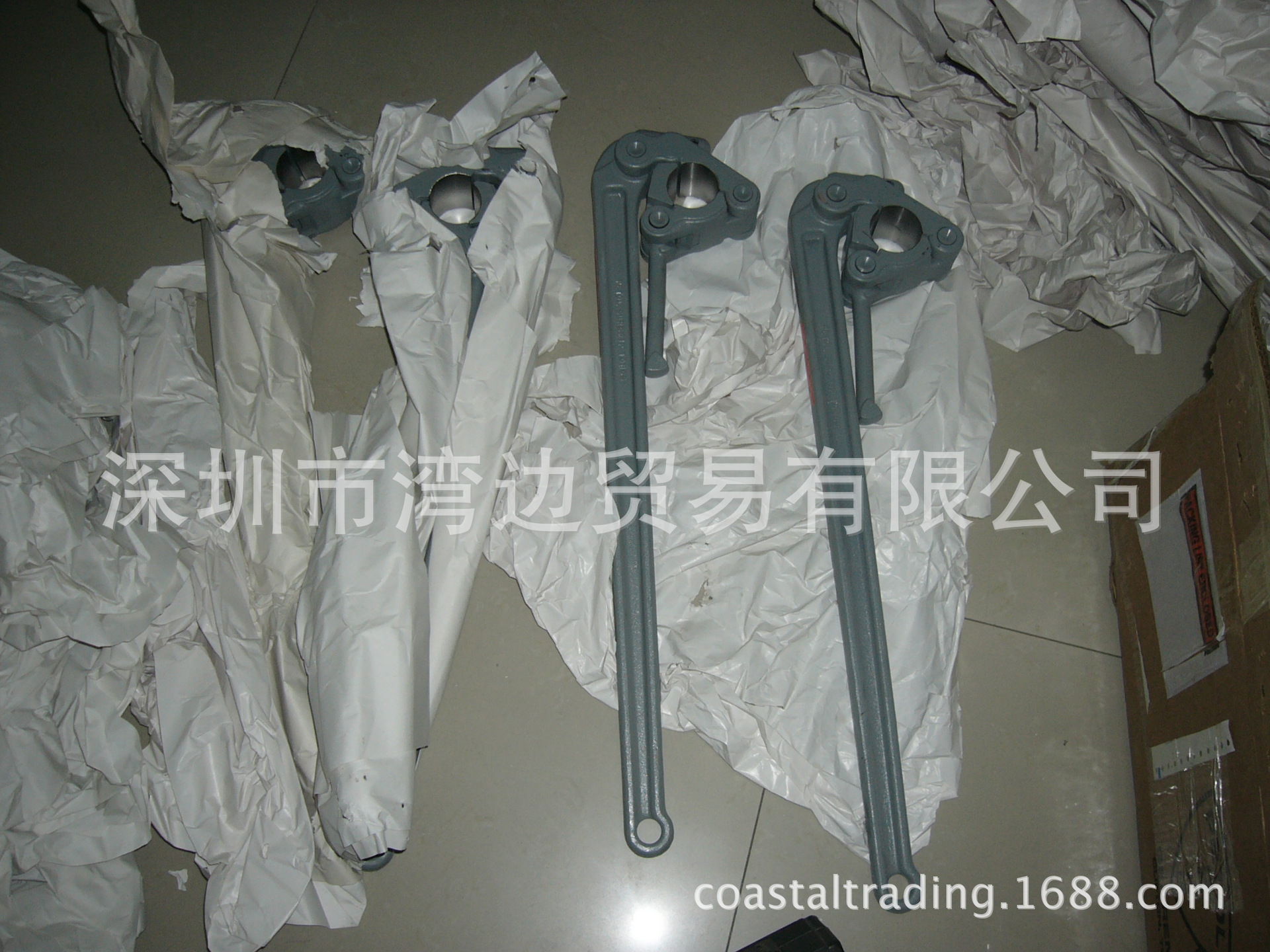

摩擦钳可用于装配和拆卸泵的零件，并且不会对泵筒或轴表面造成损害。它具有优质的钢结构，并在泵上使用后能够自动齿合，还能防止频繁的扳手调整和取出。三个精密加工的钳口能够完全夹住泵周围，而且每个摩擦钳都是经过热处理的，以保证可靠的使用多年。
Belt Tong™
Breakout Units
Casing Tong
Chain Tongs
Chain Wrenches
Elevators
Flange Tools
Friction Tongs & Vises
Herringbone Gears & Pinions
Pump Shop Equipment
Refinery Wrenches
Rig Wrenches
Run Ticket Boxes
Shothole Casing Tongs
Sight Glasses
Slim Grip Tongs (pipe wrench)
Striking/Hammer Wrenches
Sucker Rod Transfers
Sucker Rod Wrenches
Tank Safety Gauges
Torque Wrenches
Tubing Tongs
Valve Wheel Wrenches
Vises
常用型号：
Click any Catalog No. to send an inquiry.
CATALOG NO. O.D. GRIPPING WIDTH WEIGHT MAXIMUM WORKING LOAD
ZT1:0.625 0.625" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.688 0.688" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.750 0.750" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.812 0.812" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.875 0.875" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.938 0.938" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.969 0.969" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.000 1.000" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.031 1.031" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.062 1.062" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.125 1.125" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.125H 1.250" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.138 1.138" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.144 1.144" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.188 1.188" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.250 1.250" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT2:1.312 1.312" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.375 1.375" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.438 1.438" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.500 1.500" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.625 1.625" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.688 1.688" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.750 1.750" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT3:1.625 （for rod couplings） 1.625" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.750 1.750" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.812 1.812" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.875 1.875" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.938 1.938" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.960 1.960" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.000 2.000" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.062 2.062" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.125 2.125" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.188 2.188" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.228 2.228" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.250 2.250" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.302 2.302" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.312 2.312" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.340 2.340" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.375 2.375" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT4:2.375 2.375" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.500 2.500" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.562 2.562" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.625 2.625" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.688 2.688" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.750 2.750" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.812 2.812" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.875 2.875" 3.00" 20 lbs. 3000 ft-lbs.
ZT5:3.000 3.000" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.062 3.062" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.125 3.125" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.200 3.200" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.250 3.250" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.375 3.375" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.500 3.500" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.625 3.625" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.688 3.688" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.750 3.750" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.875 3.875" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:4.000* 4.000" 3.50" 45 lbs. 4500 ft-lbs.
